Add OpenPBR's base_diffuse_roughness material parameter #16183
Conversation
|
Please make sure to label your PR with "bug", "new feature" or "breaking change" label(s). |
|
Please make sure to label your PR with "bug", "new feature" or "breaking change" label(s). |
| #endif | ||
| , 0. | ||
| #ifdef BASE_DIFFUSE_ROUGHNESS | ||
| , 0. | ||
| , vec2(0., 0.) |
There was a problem hiding this comment.
What should be done here?
| , in float baseDiffuseRoughness | ||
| #ifdef BASE_DIFFUSE_ROUGHNESS | ||
| , in float baseDiffuseRoughnessTexture | ||
| , in vec2 vBaseDiffuseRoughnessInfos |
There was a problem hiding this comment.
I've mimicked what I've seen done in other blocks, but it's not clear to me how those vXYZInfos are supposed to be used.
|
Snapshot stored with reference name: Test environment: To test a playground add it to the URL, for example: https://snapshots-cvgtc2eugrd3cgfd.z01.azurefd.net/refs/pull/16183/merge/index.html#WGZLGJ#4600 Links to test babylon tools with this snapshot: https://playground.babylonjs.com/?snapshot=refs/pull/16183/merge To test the snapshot in the playground with a playground ID add it after the snapshot query string: https://playground.babylonjs.com/?snapshot=refs/pull/16183/merge#BCU1XR#0 |
|
WebGL2 visualization test reporter: |
|
Visualization tests for WebGPU |
|
WebGL2 visualization test reporter: |
|
Visualization tests for WebGPU |
|
Moving to draft until we discuss further about it tomorrow :-) |
| @@ -2319,6 +2359,11 @@ export abstract class PBRBaseMaterial extends PushMaterial { | |||
| } | |||
|
|
|||
| ubo.updateFloat("baseWeight", this._baseWeight); | |||
| if (this._baseDiffuseRoughness !== null && this._baseDiffuseRoughness !== undefined) { | |||
| ubo.updateFloat("baseDiffuseRoughness", this._baseDiffuseRoughness); | |||
There was a problem hiding this comment.
ubo.updateFloat("baseDiffuseRoughness", this._baseDiffuseRoughness ?? this._roughness);
This PR implements the
base_diffuse_roughnessparameter from the OpenPBR specification.As a first step, the PR plugs the new diffuse roughness parameter directly into the Disney diffuse model currently implemented.
A future task will be to implement the Energy Conserving Oren-Nayar model used by OpenPBR.

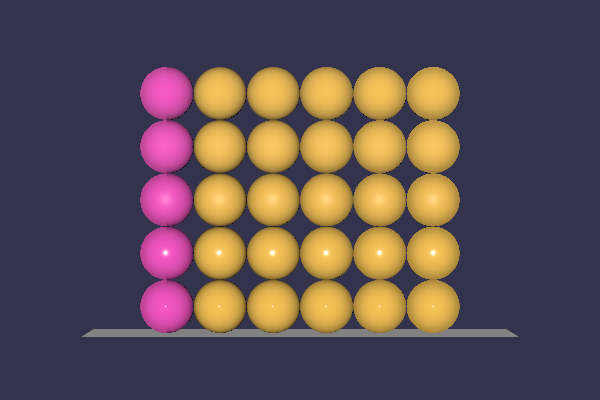

Test scene:
https://playground.babylonjs.com/?snapshot=refs/pull/16183/merge#MXACV7
A question for maintainers: this changes the behaviour of Babylon.js, as a different roughness is now used for the diffuse lobe. How do we want to handle the case where no diffuse roughness is passed? I assume we ma want to detect that case and assign the specular roughness to it?
