Exam Sage prepare your exam questions in any way you like. Using your materials, like lecture notes, slides, PDFs, charts, or anything else, along with Exam Sage's knowledge base, you can create multiple-choice, short-phrase or essay questions with Exam Sage. That’s not all! Exam Sage will act as a TA during the exams and can offer hints and support an open-book environment for students. Plus, Exam Sage can do reference grading for your exam!
- In the instructor module, you can create questions with your own materials.
- In the student module, students can answer the questions and see the reference grading.
- The files uploaded in this demo can be found in the
./demo_filesdirectory for your own verification
Exam Sage is built on RAG, an agentic database, LLM, and other underlying technologies.
- NVIDIA NIM Microservices for hub to language models
- NVIDIA Nemo Retriever/nv-embedqa-mistral-7b-v2 for the embedding model (Embedding leaderboard No.1 model) with 4096 embedding size
- meta/llama-3.1-70b-instruct for inference
- meta/llama-3.1-405b-instruct for natural language agentic DB interaction through Llamaindex
- Llamaindex Framework for RAG, agentic DB and underlying framework
- Milvus for Vector DB
- Steramlit for UI
Plus
- NVIDIA Nemo Retriever/nv-rerankqa-mistral-4b-v for reference grading on student answers
Dropped
- Nvidia NemoGuardrails - I installed Nemoguardrails seperately and worked fine. But when it was incorporated, it conflcted with libraries. Nemoguarrails seems not incorporated into framework yet (see here). I did all kinds of mix among llama-index-agent-openai, llama-index-embeddings-openai and llama-index-llms-nvidia, but it didn't work out. Nemoguardrails worked as controlling students input and moderations ( which iswell-tailored for input, output, and hallucination) but I dropeed it in the last few days.
The idea grew from open-book exams, which are a great way to test students' understanding of concepts rather than their ability to memorize facts. Now, with LLMs and relevant technologies, we can implement open LLM exams, where instructors can provide students with flexible environments and students can focus on problem-solving rather than searching through books and the internet. I expanded this idea to genral exams in K-12 schools, colleges, companies or certificate providers. And I added grading feature for instructors as well as students can use as reference grading using reranking embediing model.
No GPU required. Exam Sage uses Nvdia NIM service. Sign up, and you can use free 1000 credits. Link here (https://build.nvidia.com/explore/discover). Get API from there.
Set up The API key in your local machine
export NVIDIA_API_KEY="nvapi-..."
Then create your environment and install packages.
conda create -n myenv python=3.10.15
conda activate myenv
Linux (Ubuntu 20.04)
git clone https://github.com/gigit0000/nvidia-llamaindex-contest/
cd nvidia-llamaindex-contest
pip install -r requirements.txt
If SQLite was not installed in your machine,
sudo apt install sqlite3
For Exam Sage Instructors, run
streamlit run appinput_db.py
After completing creating questions, run the following for Exam Sage Students
streamlit run appinput_exam.py
Note that:
- If timeout errors in Nim microservices occur, just click "Finalize" button again in Instrutors or "Submit" in Students after a little break. Then it will work and show the table format of the questions and answers, or the reference grading.
- But sequetial timeouts generate an
Invaild API Keyerror. It is not a problem of your key. Just take a longer break and try again (hard learned facts). It works. - When you try to run another round of Instructors, use this script to clear out the past vector DB:
./del_dbIf the past vectod DB is not cleared, then the index on the documents in the previous run is reflected on the current run of this app. This operation was placed in the main code, but due to 1) and 2), which would delete the vector db without SQL inserting and saving, it was seperated. - In the
documents upload pane, currently MS Office formats give an "Empty Response" error (see here). So convert them to PDF first and then upload.

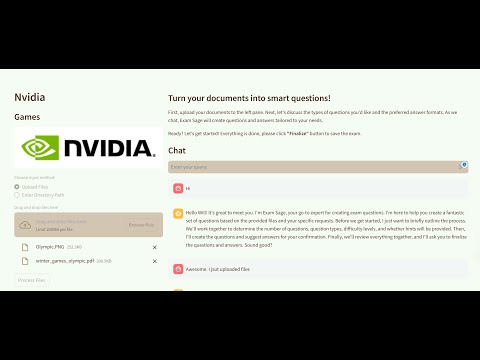

- First, instructors enter their information
- On the next screen, upload the documents to create exam questions
- Start talk with Exam Sage. Exam Sage helps instructors choose from various question options, like how many questions there will be, the difficulty level (easy, medium, or hard), the type of questions (such as multiple choice, short phrase answers, or essays), and whether hints can be given during the exam.
- Confirming the questions Exam Sage shows, click the "Finalize" button. The exam questions will then be saved to the database.
-
You can create questions based only on the documents you've uploaded, or from Exam Sage's knowledge base. But the best option is let Exam Sage work, which allows you to generate even more creative questions.
-
Nvidia embedding model nv-embedqa-mistral-7b-v2 is that with its large 4096 embeeding size, documents are well accurately interpreted and fused with LLM's base knowledge, along with Llamaindex RAG framework. Without this setup, it was hard to achieve the performance of Exam Sage.
-
LlamaIndex is powerful enough to manage the RAG flow as well as handle an agentic database. NLSQLTableQueryEngine can not only query entries but insert entries using natural language, which I guess weren’t even recognized by the team. But I found it works! (see this).
-
In the original version, questions are immediately saved to DB by the DB agent during the chat as the instructor confirms. But due to timeouts in Setup/Run/1) as described in the above, now DB agent inserts questions at the end once Finalize button is clicked.
- First, students enter their information. Incorrect organization and exam names are not allowed.
- Exam questions are displayed. Students can communicate with Exam Sage and get information as long as it is not directly or indirectly related to the answers to the questions. This enables an open-book exam.
- Exam Sage guides students in answering the questions. For questions that allow hints from the instructor, Exam Sage provides them.
- Click the "Submit" button after the student has answered all the questions.
- The correct answers along with the reference gradings are displayed.
Exam Sage enables faster feedback and scoring for students, which can help them understand their performance more quickly, and also give potential time-saving and administrative benefits for instructors by automating grading and feedback
- The gradings are logit values from the Nvidia Reranking model. The logit in Grading 1 corresponds to the student's answer, while the logit in Grading 2 corresponds to the correct answer given by the instructor. If we compare the values, we can estimate whether the student's answer is correct, near correct or incorrect. This is good enough for refernce grading to help students to see immediate results and to give reference to instructors.
- Furthermore, with a scaling factor, the logit values were supposed to be transformed into a 100-point scale and/or a letter grading system based on the student's answer only, as the reranking model provides an absolute value for the same question.
- During the test, however, the reranking model was found to be unstable (see here). So, I added the teacher's answer to compare both logits and make an estimate. At this stage, it should only be used as an estimate in comparison to the correct answer. But again, it give a good reference point.
- See the materials in
nvidia-llamaindex-contest/supporting_materials - Tech presentation: See instagram post
- Also See this for engagement (1, 2, 3)
- X: twitter
- Demo X
- Demo Youtube
- Tech Stact instagram
This app is more than just a lab experiment; it’s for practical use across various educational settings, when equipped with security measures such as LAN access control and desktop IP restrictions. While hallucinations couldn’t be entirely eliminated, with incorporating Nemoguardrails and adding a few verification steps to conversations I believe Exam Sage is a valuable education tool for students, trainers as well as teachers, professors, and instructors.
- Students ID verification process
- Security modules for DB and DB inserts statements
- Emailing the exam result to instructors
